Residential Energy Storage System

5KW 8KW 10KW 12KW 220V Single Phase Home Use Solar Power System

EnjoySolar 4KW-12KW Solar Energy Storage System is designed specifically for residential applications.

The system comes with Lead Acid/ lithium‑ion battery, the battery capacity can be customized based on the customer's actual energy consumption profile.

The system automatically prioritizes solar power during the day and battery power at night or during grid outages. This helps customers reduce electricity costs and achieve greater energy independence.



System Power: 5KW/6KW/8KW/10KW/12KW (optional)
AC Voltage: EU: 220V/230V single phases, US: 120v/240v split phases
Battery Capacity: 5kwh/10kwh/16kw/20kwh/30kwh (optional)
Quality Guarantee: 10 Years+

Inquire Now

WhatsApp

Share:

Detailed description

Advantages

  • Lower Electricity Bills & Energy Independence
  • Reliable Backup Power
  • Scalable & Flexible Sizing
  • Seamless On‑Grid & Off‑Grid Switching
  • Clean & Silent Operation
  • Easy Installation & Smart Monitoring

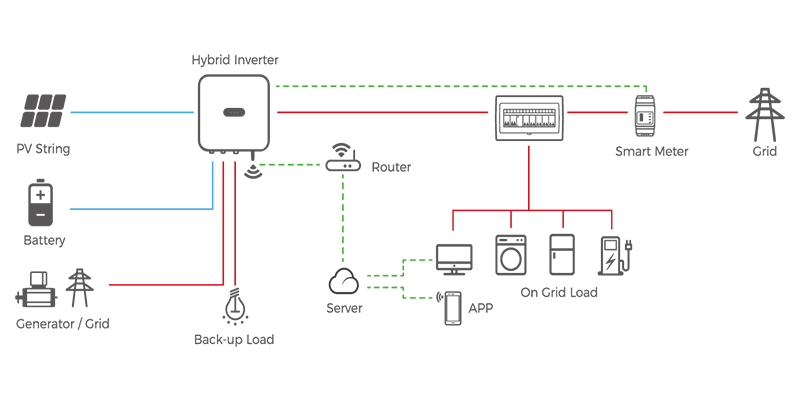

System Connect Diagram

Home use solar system diagram

System Configurations

System PowerRemarks5KW8KW10KW12KW
Solar PanelEnjoySolar/LonGi/other Brand620WP*9PCS620WP*14PCS620WP*18PCS620WP*20PCS
PV Combiner Box500Vdc/1000Vdc
Built in with Breaker and SPD		1 INPUT 1 OUTPUT* 1PC1 INPUT 1 OUTPUT* 1PC2 INPUTS 2 OUTPUTS* 1PC2 INPUTS 2 OUTPUTS* 1PC
Hybrid InverterDeye/SNRE/AFORE/Growatt
230V/400V or 120V/208V		5KW8KW10KW12KW
Lithium Battery StorageES51200 10.24KWH/ES51314 16KWH10.24KWH*1PC16KWH*1PC16KWH*1PCS16KWH*2PCS
PV ConnectorMC4 Compatible4 pairs6 pairs8 pairs8 pairs
PV CablePV1-F/H1Z2Z2-K
1*4/6mm2		100 mtr red100 mtr blk100 mtr red200 mtr red200 mtr red
Remote MonitoringWIFI1111
PV Mounting StructureAluminum/ SteelCustomizedCustomizedCustomizedCustomized
Application Scenarios：

  • EV charging

  • BESS Station

  • Commercial Mall

  • Farm

FAQ：

  • How does a home solar energy storage system work?

    The system stores excess electricity generated by your solar panels during the day in a lithium battery. At night or during grid outages, the stored energy is discharged to power your home. An intelligent energy management system (EMS) automatically controls charging and discharging to maximize self‑consumption and reduce reliance on the grid.

  • What happens during a power outage? Can the battery keep my home running?

    Yes. When the grid fails, a hybrid inverter or battery system with islanding capability automatically disconnects from the grid and supplies backup power to selected circuits (e.g., lights, fridge, internet, medical devices). Most home systems can provide 5–15 kWh of backup, which typically lasts 4–12 hours depending on load.

  • How long does a home storage battery last?

    Most lithium‑iron‑phosphate (LFP) batteries last 10 years or 6,000‑10,000 cycles (whichever comes first). After that, the battery still works but retains about 70‑80% of its original capacity. A 10‑year warranty is standard for quality home storage systems.
