Model
|
ES460-54M-H8NS
|
|
Solar Cell
|
N-type Topcon
|
|
Size
|
1722*1134*30mm
|
|
Power Range
|
450W-460W
|
|
Certificate
|
UL/CE/TUV/INMETRO
|
|
Warranty
|
30Years
|
|
Packing Configuration
|
36pcs/pallet,936pcs/40container
|

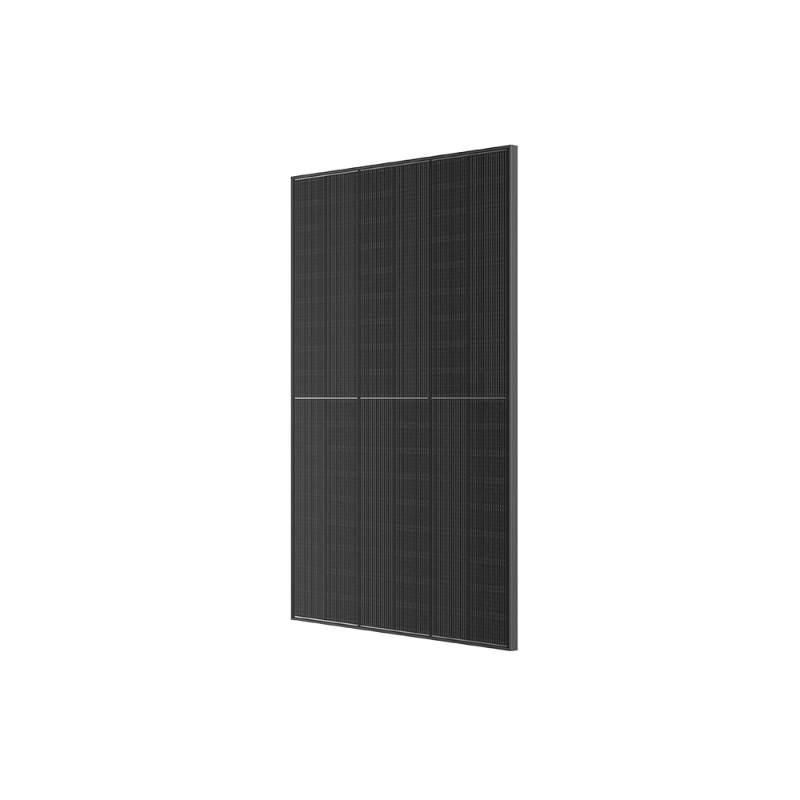

Solar Panel
Enjoy Solar N Type Topcon Solar Cells Full Black Solar Panel 450W 460W For Solar System
Detailed description
| Electrical Characteristics (STC) | ||||||
| Module Type | ES440-54M-H8NS | ES450-54M-H8NS | ES460-54M-H8NS | |||
| Test Cpnditions | STC | NMOT | STC | NMOT | STC | NMOT |
| Maximum Power – Pmax(W) | 440 | 324 | 450 | 331 | 460 | 339 |
| Open Circuit Voltage – Voc(V) | 38.26 | 36.63 | 38.56 | 36.93 | 38.86 | 37.23 |
| Short Circuit Current – Isc(A) | 15.03 | 11.36 | 15.21 | 11.45 | 15.39 | 11.58 |
| Voltage at Pmax – Vmp(V) | 31.7 | 29.65 | 31.99 | 29.93 | 32.29 | 30.24 |
| Current at Pmax – Imp(A) | 13.89 | 10.93 | 14.07 | 11.06 | 14.25 | 11.21 |
| Module Efficiency – nm(%) | 22.53 | / | 23.04 | / | 23.42 | / |
| Power Tolerance(W) | (0, +5W) | |||||
| Maximum System Voltage(V) | 1500Vdc(IEC, UL) | |||||
| Maximum Series Fuse Rating(A) | 25A | |||||
| *STC: Irradiance 1000W/m², Cell Temperature 25℃， Air Mass 1.5 | ||||||
| *Measurement tolerance: ±3% *Power binning up to: +3% | ||||||
Enjoy Factory
Shipping
Application Scenarios：
-
Power Plant
-
Commercial Mall
-
Hospital
-
Factory
FAQ：
-
What are the efficiency advantages of a 620W TOPCon N-Type bifacial solar panel?
620W TOPCon N-Type bifacial solar panels use advanced N-type TOPCon cell technology, which offers higher conversion efficiency, lower degradation rates, and improved low-light performance compared to conventional PERC modules. -
How does a bifacial solar panel generate more energy?
Bifacial solar panels can absorb sunlight from both the front and rear sides. When installed on reflective surfaces like ground-mounted systems or white rooftops, they can generate additional energy from the rear side light capture. -
Are 620W solar panels suitable for utility-scale solar farms?
Yes. 620W solar panels are ideal for commercial rooftops and large utility-scale solar farms since they require fewer modules for the same power output, reducing balance-of-system (BOS) costs and installation time. -
What is the expected lifespan of a TOPCon N-Type solar panel?
High-quality TOPCon N-Type solar panels typically have a lifespan of 25–30 years with a low annual degradation rate, ensuring stable performance and long-term energy production throughout the system life. -
Can this 620W solar panel be used in high-temperature environments?
Yes. This 620W solar panel is designed with an excellent temperature coefficient and robust materials, making it suitable for operation in high-temperature and harsh environmental conditions.
