Solar Inverter

Enjoy Solar 3-10kw On Grid Inverter Three Phase

Enjoy solar 3-10kW Three phase series string inverter are reliable preferred equipment for residential, small industrial and commercial pv power stations.Smaller size, higher efficiency, a variety of power models available for selection. Adopt two MPPT access, more flexible and efficient.

Product Configuration：

Model:	MOD3000-10000TL3-X
Type:	PV On-Grid String Inverter
Max Power:	10KW
Max. Efficiency:	98.60%
Communication:	RS485/Wifi/4G
Warranty:	5 Years(10 Years Option)
Certificate:	CE/TUV/EN50549/VDE4105/VDE0126

Inquire Now

Detailed description

Advantage

Type II SPD on DC side
Support export limitation
AFCI function optional

Max. efficiency 98.1%
Dual/Three MPPTs
Wide MPPT voltage range

IP66 protection degree
Touch key and OLED display
Compact design for one person installation

Basic Parameters

Model		MOD3000TL3-XH	MOD5000TL3-XH	MOD8000TL3-XH	MOD10KTL3-XH
DC Input	Max. DC Voltage	1100V
	Nominal Voltage	600V
	Start Voltage	160V
	MPPT Voltage Range	140V-1000V
	Number of MPPT Tracker	2/1
	Strings Per MPPT Tracker	1
	Max. Input Current Per MPPT	16A
	Max. Short-circuit Current Per MPPT	20A
AC Output	Nominal AC Output Power	3000W	5000W	8000W	10000W
	Max. AC Output Power	3000VA	5000VA	8800VA	11000VA
	Nominal AC Voltage	220V/380V, 230V/400V (340-440V)
	AC Grid Frequency Range	50/60 Hz (45-55Hz/55-65 Hz)
	Max. Output Current	5.0A	8.3A	13.3A	16.7A
	Power Factor(Φ)	0.8leading-0.8lagging
	THDi	3%
Efficiency	Max.Efficiency	98.30%	98.30%	98.60%	98.60%
	European Effciency	97.50%	97.50%	98.10%	98.10%
Protection Devices	DC Switch	Yes
	Output Over Current	Yes
	Anti-islanding Protection	Yes
	DC Reverse Polarity Protection	Yes
	String Fault Detection	Yes
	DC/AC Surge Protection	DC: Type II / AC: Type III / Type II Optional
	Insulation Detection	Yes
	AC Short Circuit Protection	Yes
General Specifications	Dimensions W x H x D	25/387/147mm
	Weight	<19kg
	Operating Temperature Range	–25°C~+60°
	Cooling Type	Natural cooling
	Max. Operating Altitude	4000m
	Max. Operating Humidity	0-100%(No condensation)
	AC Output Terminal Type	Connector
	IP Class	IP66
	Topology	Transformer-less
	Communication	RS485/Wifi/4G
	Display	LCD
	Certification & Standard	EN/IEC62109-1/2; IEC/EN61000-6-2; IEC/EN61000-6-4; IEC61683; IEC60068; IEC60529; IEC62116; IEC61727; EN50549-1; AS 4777.2; VDE-AR-N-4105; VDE 0126-1-1; CEI0-21; G98; G99; C10/C11; NB/T32004-2018; GB/T19964-2012

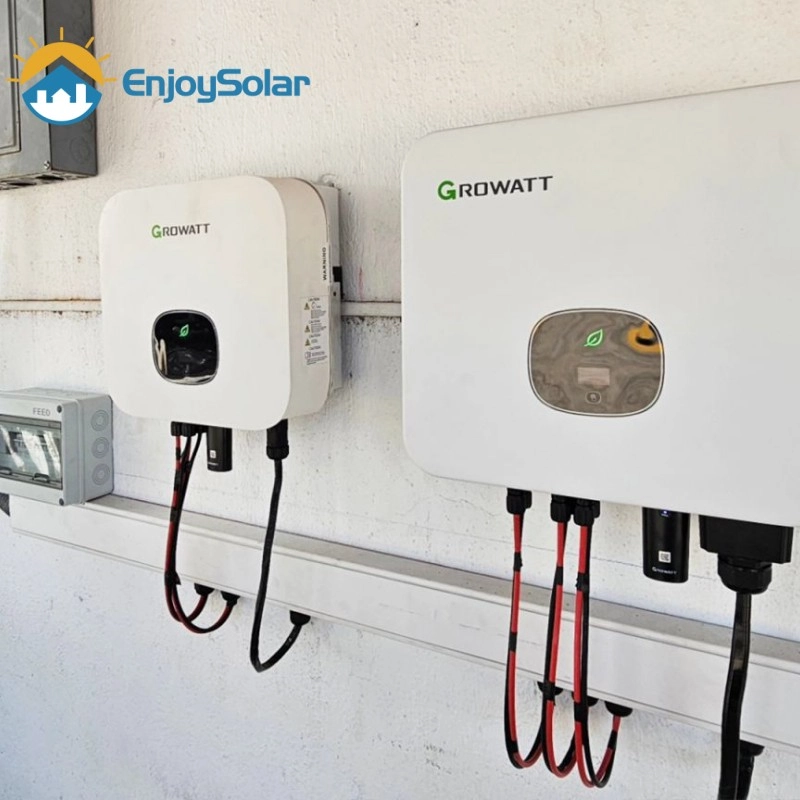

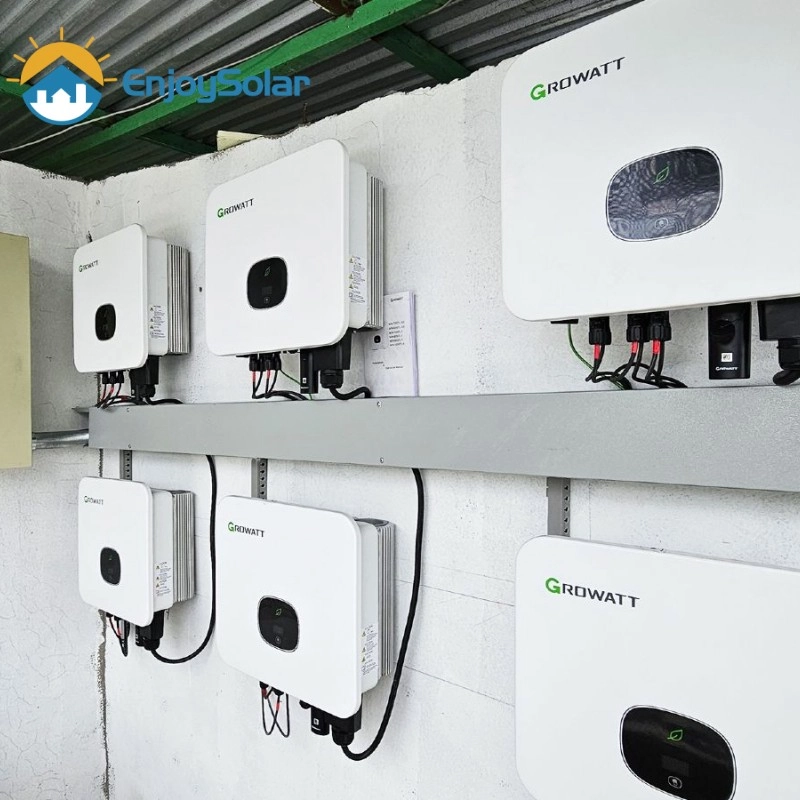

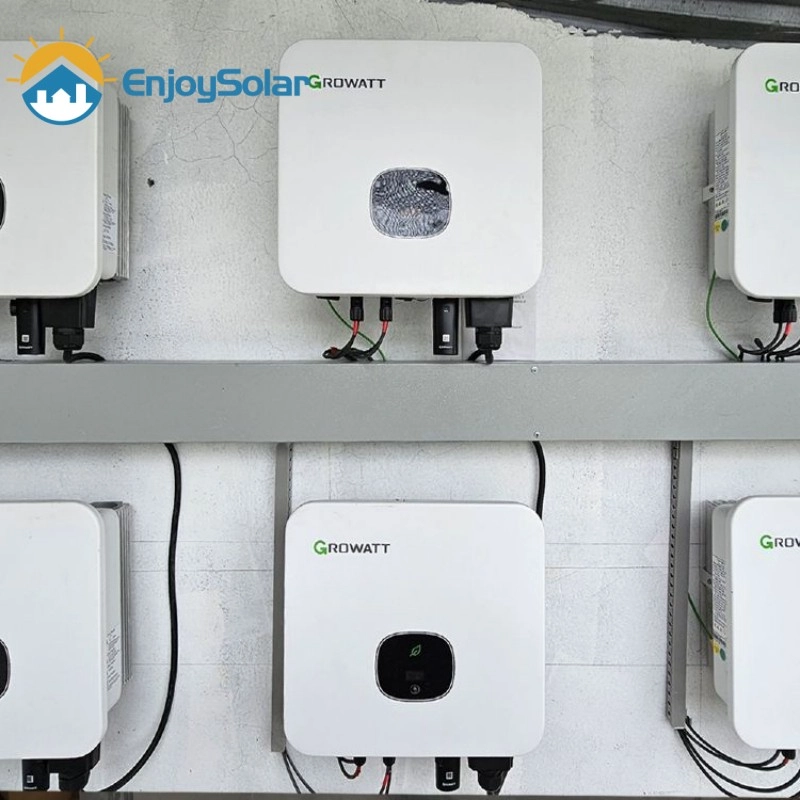

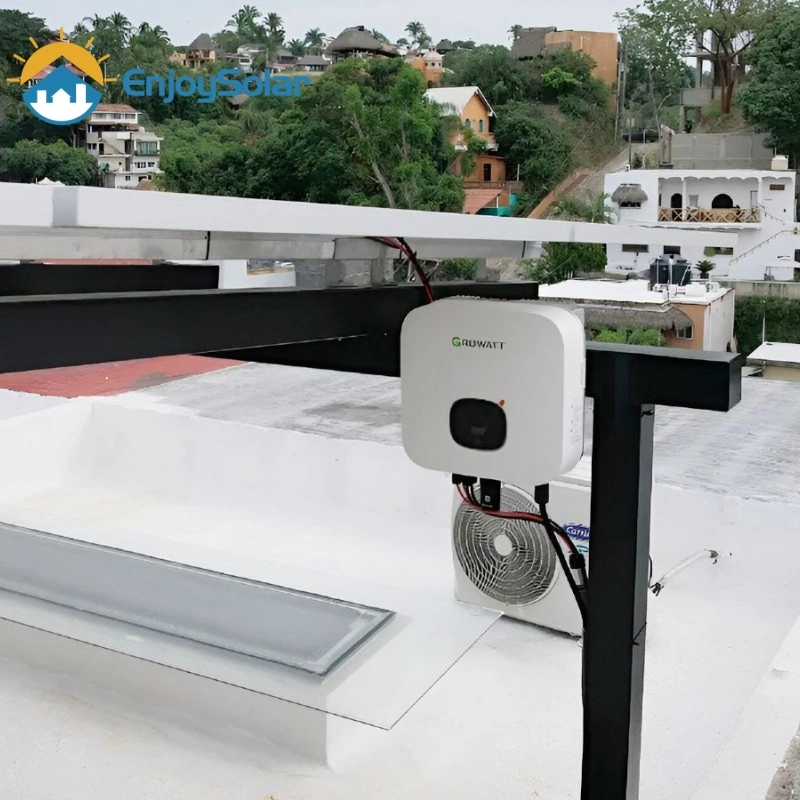

Projects

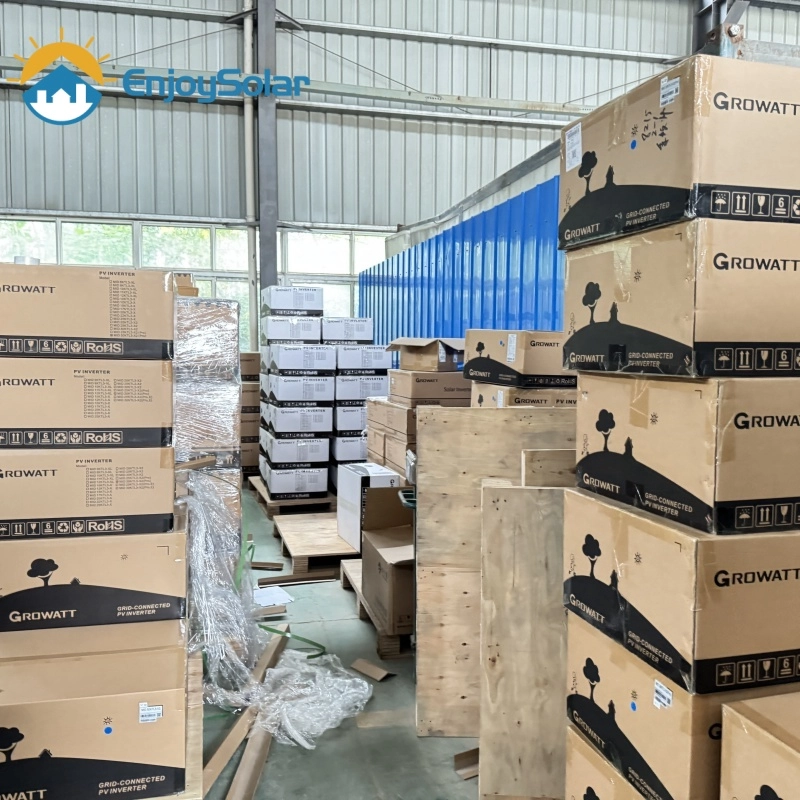

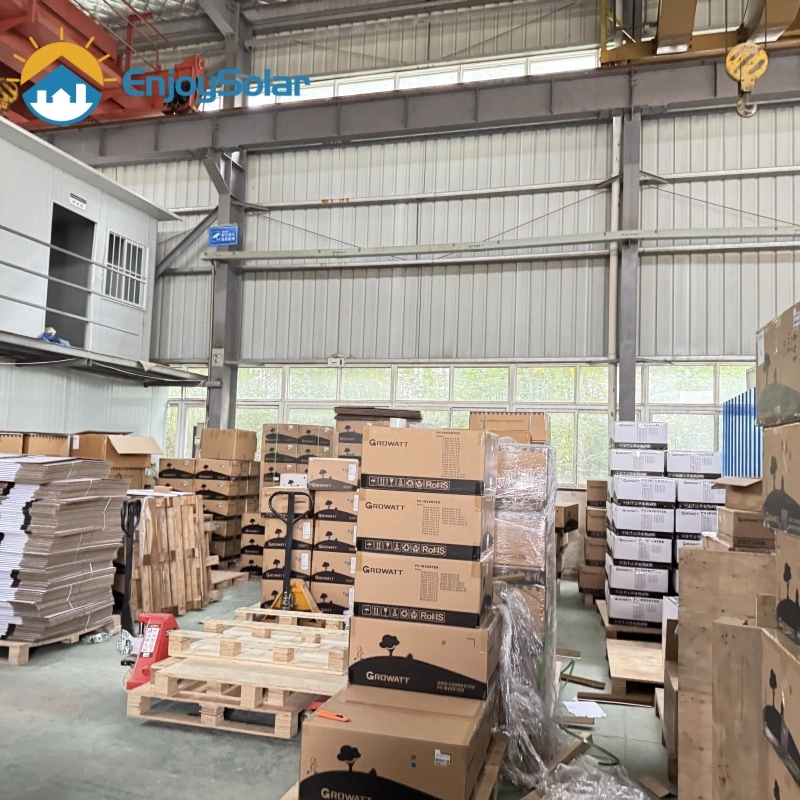

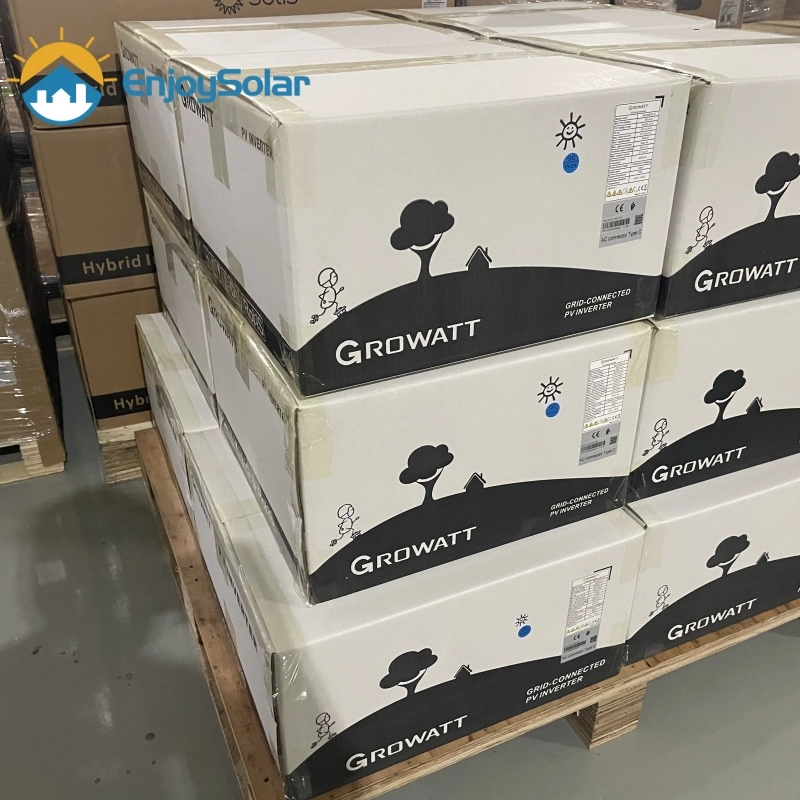

Shipping

Application Scenarios：

Factory
Business Districts
Farm, Residential House
Hospital

FAQ：

Can the on-grid inverter continue supplying power when the utility grid fails?

No. Standard on-grid inverters are designed with anti-islanding protection and will automatically shut down when the grid is unavailable to ensure safety for utility workers and equipment.
What is the maximum conversion efficiency of the inverter?

Depending on the model, the maximum efficiency can reach up to 98%–99%, helping users maximize solar energy utilization and system performance.
Can I monitor the inverter performance remotely?

Yes. Most models support WiFi, Ethernet, or 4G communication, allowing users to monitor power generation, energy consumption, and system status through a web portal or mobile app.
What safety protections does the inverter provide?

The inverter is equipped with multiple protection functions, including over-voltage protection, over-current protection, short-circuit protection, anti-islanding protection, surge protection, and temperature protection to ensure reliable operation.
