HomeProductsSolar Inverter30KW 50KW 100KW 150KW 250KW 500KW ON OFF GRID HYBRID SOLAR POWER INVERTER WITH ISOLATED TRANSFORMER FOR C&I Solar ESS
Solar Inverter

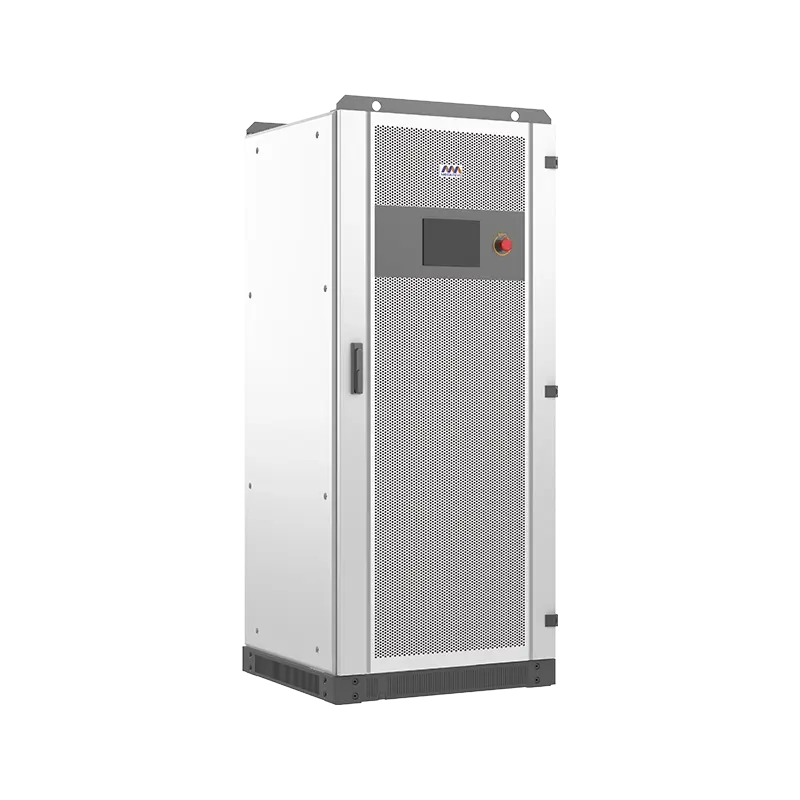

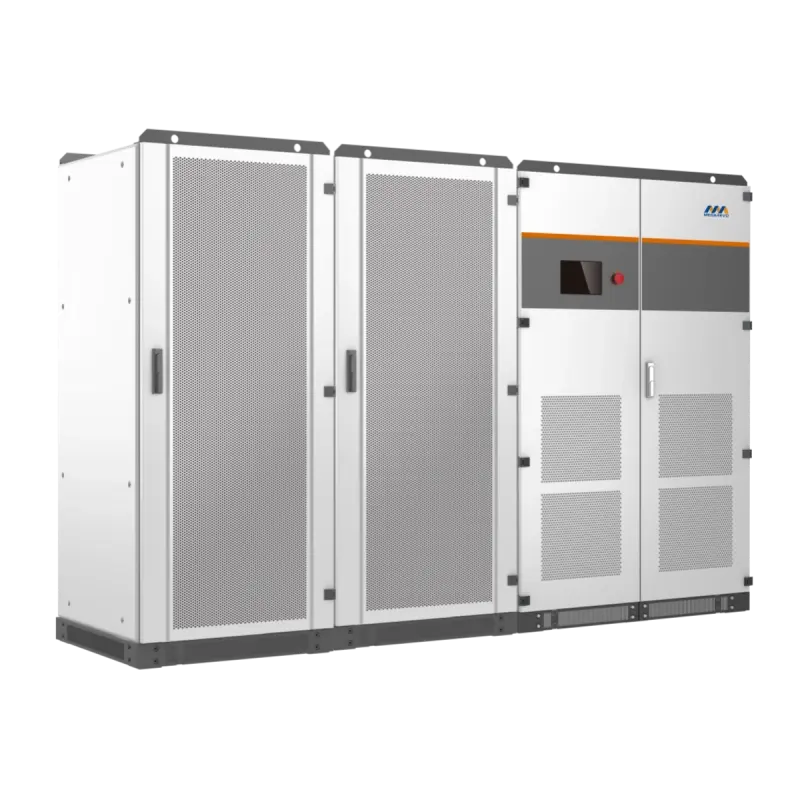

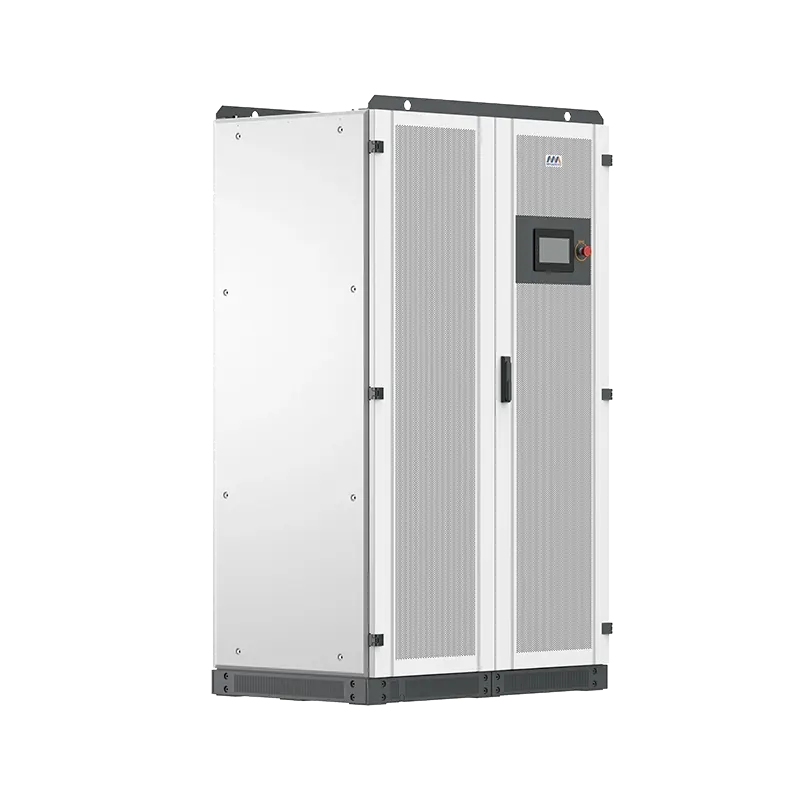

30KW 50KW 100KW 150KW 250KW 500KW ON OFF GRID HYBRID SOLAR POWER INVERTER WITH ISOLATED TRANSFORMER FOR C&I Solar ESS

The MPS hybrid inverter series is specifically designed for microgrid applications, remote areas, islands, and locations with weak or no grid access.

Key Features：

Integrated Design: Combines PV controllers, energy storage converters, and on/off-grid automatic switching units into a single system, significantly improving deployment efficiency and reducing installation costs

Flexible Configuration: Supports flexible PV capacity configuration, greatly enhancing microgrid system availability and resilience

Wide Power Range: Available from 30kW to 500kW, supporting both single-phase and three-phase loads

Global Certifications: Certified for markets including the EU, South Africa, Pakistan, India, Australia, Italy, and the UK

Inquire Now

WhatsApp

Share:

Detailed description

System Diagram

Product Datasheet

ModelMPS0030MPS005  MPS0100MPS0150MPS0250MPS0500
AC(on-grid)
Max. output power (kW)3355110165275550
Rated output power (kW)3050100150250500
Rated voltage (V)400
Voltage range (V)320~460
Rated current (A)4372144216361722
Rated frequency (Hz)50/60
Frequency range (Hz)45~55 / 55~65
THDi<3%
Power factor1leading-1lagging(settable)
Grid type3W+N+PE
AC(off-grid)
Max. output power (kW)3355110165275550
Rated power (kW)3050100150250500
Rated voltage (V)400
Rated current (A)4372144216361722
THDu≤1% linear;  or≤5% nonlinear
Rated frequency (Hz)50/60
Overload capacity110% long-term, 120% 1min
PV input
Max. PV input voltage (V)1,000
Max. PV power (kW)82.582.5165/247.5165/247.5/330330/412.5660/742.5/825
MPPT module quantity112/32/3/44/58/9/10
MPPT voltage range (V)250~1000
Battery
Battery voltage range (V) 250~850320~850420~950420~950420~950500~950
Max. charging power (kW)3355110165275550
General data
Dimension W*D*H (mm)800*800*1,900800*800*1,9001,200*800*2,0501,200*800*2,050(600*720*2,050)*1+1,200*800*2,050(600*720*2,050)*2+1,600*1,050*2,050
Weight (kg)6207201,120/1,1501,250/1,280/1,3101,950/1,9803,205/3,235/3,265
Operation temperature (℃) -30 ~ 55
Relative humidity0 ~95% non-condensing
Ingress protectionIP20
Noise emission (dB)<70
Operating altitude (m)>3,000 Derating
CoolingAir Cooling
Display and communication
DisplayLCD touch-screen
BMS communicationRS485, CAN
EMS communication RS485, TCP/IP
CertificatesEN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, NRS 097-2-1:2024, ASGC

Related Products

Application Scenarios：

  • Factory

  • Business Districts

  • Farm, Residential House

  • Hospital

FAQ：

  • What is the advantage of Enjoy Solar?

    Enjoy Solar stands out in the photovoltaic industry due to its integration of advanced manufacturing, a strong supply chain, and a customer-centric service model. We leverage high-efficiency solar module technology and rigorous quality control to ensure product durability and performance. By optimizing its production processes and securing reliable access to raw materials, we are able to deliver cost-effective solutions without compromising on reliability. Furthermore, we offer tailored services for both residential and commercial projects, providing end-to-end support from system design to after-sales maintenance. This comprehensive approach makes us a trusted partner for sustainable energy deployment.

  • Can Solar Power be Profitable?

    Yes, solar power can be profitable. The profit comes from reducing or replacing expensive grid electricity, selling excess power back to the grid through net metering, and utilizing government incentives like tax credits. Once the system pays for itself (typically within 3-8 years), the electricity generated over its remaining 20-25 year lifespan is essentially free, resulting in significant long-term savings. Profitability depends on local electricity rates, sunlight availability, system cost, and incentive policies. In most sunny to moderately sunny regions with average or higher utility rates, solar provides a strong return on investment.

  • What products do you supply?

    Our offerings encompass high-quality photovoltaic modules, energy storage lithium batteries, high-end PV inverters, and other solar-related products. Leveraging our professional technical team, we provide customers with customized, complete photovoltaic system solutions — covering residential, commercial & industrial, and power station applications — supported by a full suite of pre-sales and after-sales technical services.

  • What is your product warranty? and How can I claim it?

    We offer 30 years on panels, 10 years on lithium batteries, 3 to 10 years on inverters depend on the type. For claims, simply email us photos of the issue along with your purchase info. We'll respond within 24 hours and, once confirmed, either ship a free replacement or reimburse your loss.
